MongoDB Atlas Setup Guide

After you have selected MongoDB Atlas as the Source for creating the Pipeline, provide the connection settings and data replication details listed here on the Configure your MongoDB Atlas Source page. You can fetch the database settings from your MongoDB Atlas account.

You can connect to the MongoDB database in one of the following ways:

  • By specifying the individual connection fields such as database host, database port, username, and password.

  • By entering the connection URI to connect to your MongoDB replica set or sharded cluster.

    Connection URIs are of two types:

    • DNS Seedlist: This type of connection URI has the prefix mongodb+srv://.

      For example, mongodb+srv://Jerome:Hevo123@cluster0.t7l5k.mongodb.net/test.

      The +srv part indicates that the hostname corresponds to a DNS SRV record. The hostnames and port values for your MongoDB database are fetched from the DNS SRV record.

    • Standard Connection String: This type of connection URI has the prefix mongodb://. This contains a comma-separated list of host:port combinations.

      For example, mongodb://Jerome:Hevo123@cluster0-shard-00-00.t7l5k.mongodb.net:27017,cluster0-shard-00-01.t7l5k.mongodb.net:27017,cluster0-shard-00-02.t7l5k.mongodb.net:27017/test?replicaSet=atlas-uax6f3-shard-0&ssl=true&authSource=admin.

      In the above example, Jerome is the database user and Hevo123 is the password for the database user.

Prerequisites

Perform the following steps to configure your MongoDB Atlas Source:

Set up Permissions to Read MongoDB Atlas Databases (Optional)

You need to assign the required permissions to the database user to access the different MongoDB Atlas databases.

To do this, you can create a custom role and assign it to the database user. Or, you can provide pre-defined MongoDB roles to the database user.

1. Create a custom role

To create a custom role:

  1. Log in to the MongoDB Atlas console.

  2. In the left navigation pane, under Security, click Database Access.

    Database Access

  3. On the Database Access page, click the Custom Roles tab.

    Custom Roles

  4. Click +ADD NEW CUSTOM ROLE.

    Add Custom Role

  5. In the Add Custom Role pop-up window, specify the Custom Role Name.

    Custom Role Name

  6. Assign the required action or role:

    Assign Role

    • If want to use the Change Streams ingestion mode for your Pipeline:

      • Assign either the read role or the listCollections action on the local database.

      • Assign either the read role or the find and changeStream actions on the database(s) you want to ingest.

      • Assign either the readAnyDatabase role or the listDatabases action on the admin database. This is mandatory if you want to load data from all the databases, which is indicated by selecting the Load All Databases option during MongoDB Atlas Source configuration.

    • If want to use the OpLog ingestion mode for your Pipeline:

      • Assign either the read role or the find, listCollections, and listIndexes actions on the database(s) you want to ingest.

      • Assign the read role on the local database.

  7. Click Add Custom Role.

    Add Role

2. Create a database user

To create a database user:

  1. Log in to the MongoDB Atlas console.

  2. In the left navigation pane, under Security, click Database Access.

    DB Access

  3. Click + ADD NEW DATABASE USER.

    Add User

  4. Select Password as the Authentication Method.

    Auth Method

  5. Under Password Authentication, specify the new username and password.

    Specify Username Password

  6. In the Database User Privileges section, do the following:

    • For custom roles created in the previous step:

      1. Click Custom Roles.

        Custom Roles

      2. Click Add Custom Role and select the role that you created above.

        Add Role

    • For specific MongoDB privileges:

      Specific Privileges

      1. Select Specific Privileges.

      2. In the Select Role drop-down, assign the read role to the local Database.

      3. Click Add Specific Privilege, and do one of the following:

        • Assign readAnyDatabase to the admin database. This is mandatory if you want to load data from all the databases; as indicated by selecting the Load All Databases option during MongoDB Atlas Source configuration.

        • Assign read privileges to the database(s) you want to ingest and listDatabases privileges on the admin database.

  7. Click Add User.

    Add user

Note: After you create or modify a user in the MongoDB Atlas console, you must wait five minutes for the changes to take effect.

Whitelist Hevo’s IP Addresses

To whitelist Hevo’s IP address:

  1. Log in to the MongoDB Atlas console.

  2. In the left navigation pane, under Security, click Network Access.

    Network Access

  3. In the IP Access List tab, click + ADD IP ADDRESS.

    Add IP Address

  4. In the Add IP Access List Entry pop-up window, under the ADD CURRENT IP ADDRESS tab, enter the Hevo IP address you want to whitelist in the Access List Entry field.

    Note: To provide access to all IPs, specify 0.0.0.0.

    Whitelist Hevo IP

  5. Click Confirm.

Retrieve Database Settings

Perform the following steps to retrieve your MongoDB Atlas database settings:

  1. Log in to the MongoDB Atlas console.

  2. In the drop-down on the top left corner of the page, select the project for which you want to replicate the data.

    Select Project

  3. On the Overview page, Clusters section, click CONNECT.

    Connect to DB

  4. In the Connect to <Cluster Name> pop-up window, under Access your data through tools, click Compass.

    Compass selection

  5. In the Connecting with MongoDB Compass section, do the following:

    1. Click I have MongoDB Compass Installed. Note: Select this option even if you do not have MongoDB Compass. You do not need MongoDB Compass to configure MongoDB Atlas as a Source in Hevo.

      Select Compass Installed

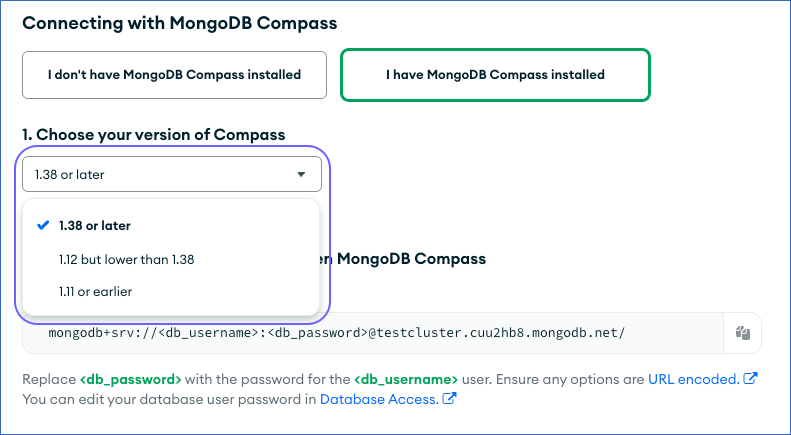

    2. Select the version of the compass:

      • If your MongoDB version is 3.6 or later, select 1.12 or later.

        MongoDB version 1.12

      • If your MongoDB version is earlier than 3.6, select 1.11 or earlier.

        Mongo version 1.11

  6. Copy the connection string that appears in the code block. The connection string varies as per the Compass version you select.

    Copy connection string

    Note: Replace the <username> and <password> in the connection string above with your database username and password. For example, in the following connection string for MongoDB Compass version 1.11 or earlier, the username is replaced with jerome and the password with Hevo123:

    mongodb://jerome:Hevo123@cluster0-shard-00-00.t7l5k.mongodb.net:27017,cluster0-shard-00-01.t7l5k.mongodb.net:27017,cluster0-shard-00-02.t7l5k.mongodb.net:27017/test?replicaSet=atlas-uax6f3-shard-0&ssl=true&authSource=admin

  7. Refer to section, Configure MongoDB Atlas Connection Settings for the steps to configure the Source in Hevo.

Configure MongoDB Atlas Connection Settings

Perform the following steps to configure MongoDB Atlas as a Source in Hevo:

  1. Click PIPELINES in the Navigation Bar.

  2. Click + CREATE PIPELINE in the Pipelines List View.

  3. On the Select Source Type page, select MongoDB Atlas.

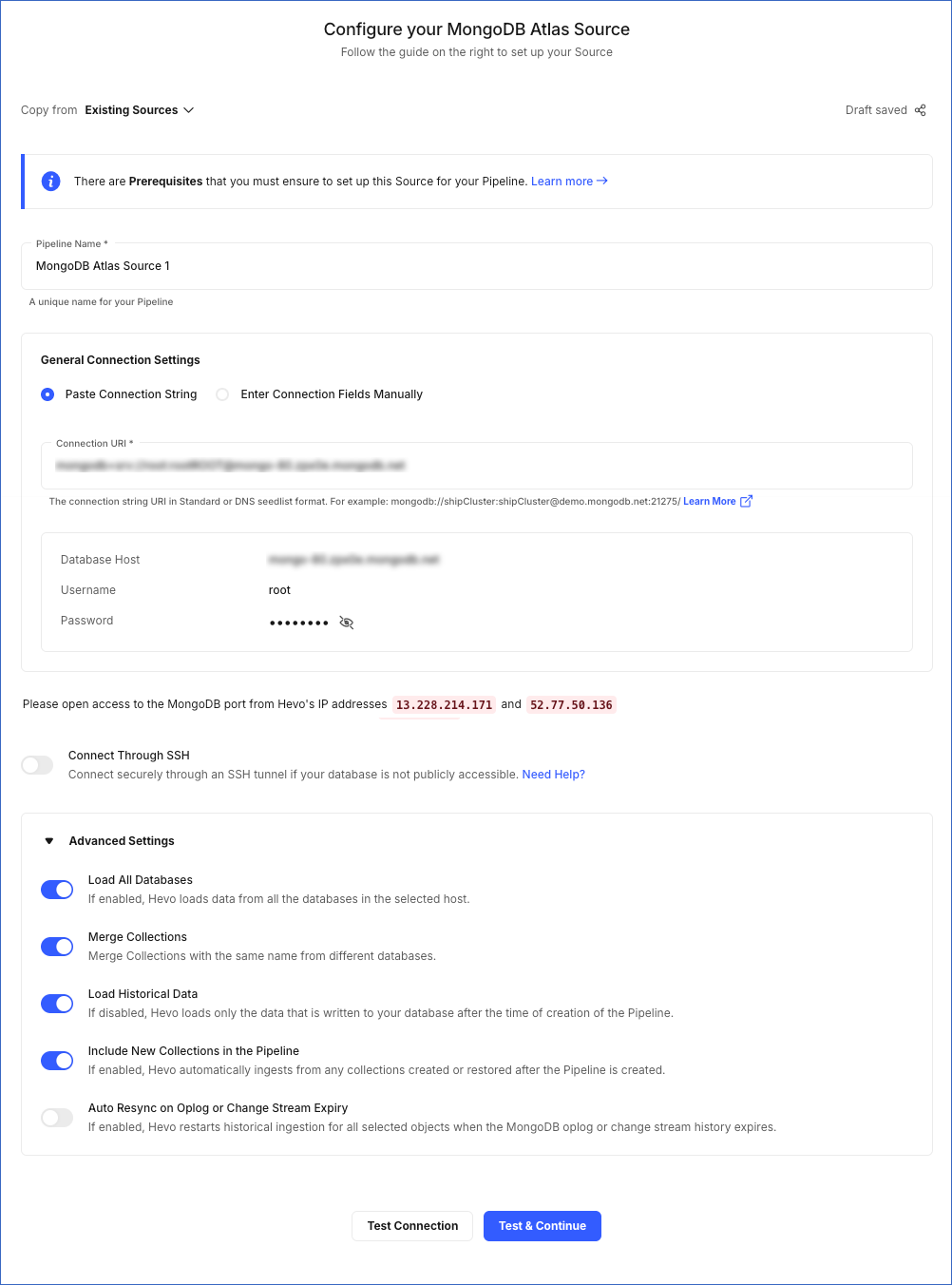

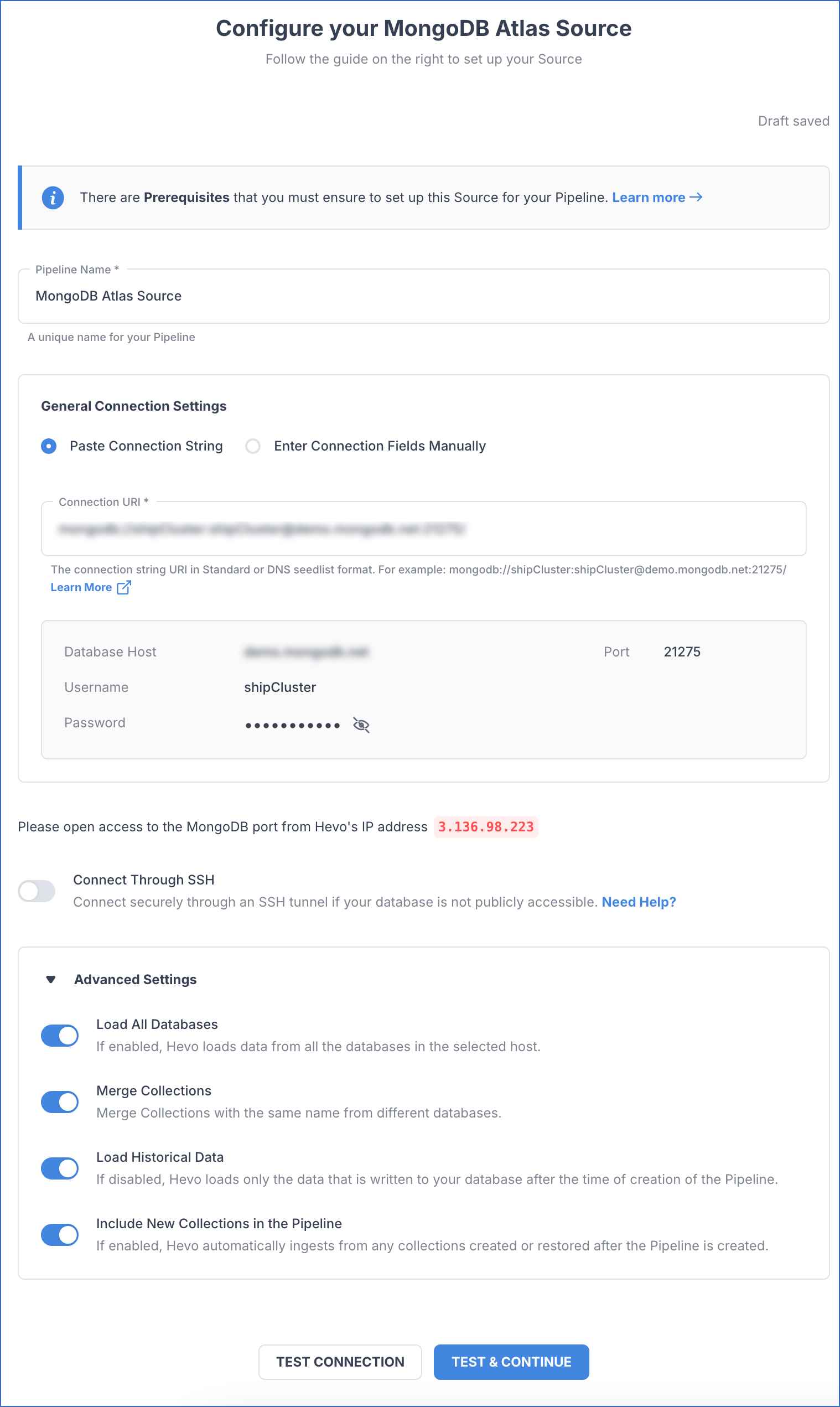

  4. On the Configure your MongoDB Atlas Source page, specify the following:

    Configure Atlas as a Source

    • Pipeline Name: A unique name for the Pipeline, not exceeding 255 characters.

    • General Connection Settings:

      • Paste Connection String:

        • Connection URI: The unique identifier for connecting to a MongoDB replica set or a sharded cluster.

          Note: If you are connecting to a sharded cluster, Hevo automatically extracts all the shards of the cluster.

      • Enter Connection Fields Manually:

        • Database Host: The MongoDB DNS name fetched from your MongoDB Atlas account.

          Note: To connect to a sharded cluster, specify only the parent cluster name. For example, if your host is the sharded cluster, cluster0-shard-00-00.t7l5k.mongodb.net, cluster0-shard-00-01.t7l5k.mongodb.net, cluster0-shard-00-02.t7l5k.mongodb.net, the parent hostname would be cluster0.t7l5k.mongodb.net. Hevo automatically extracts all the shards of the cluster.

        • Database User: The authenticated user who has permission to read collections in your database. Read Setting up Permissions to Read MongoDB Atlas Databases

          Note: It is recommended that only the read-only permission be provided to the user.

        • Database Password: The password for the database user.

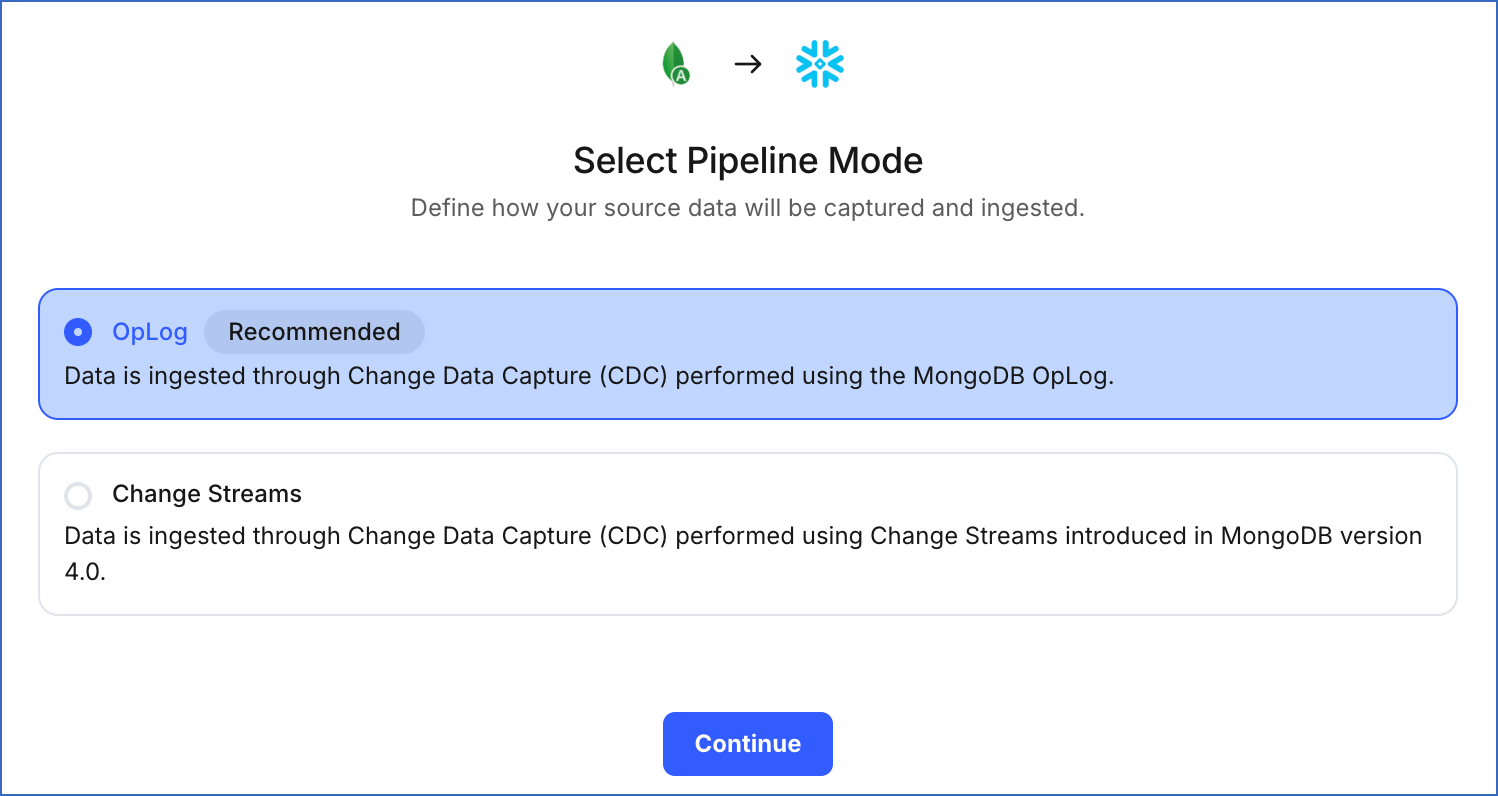

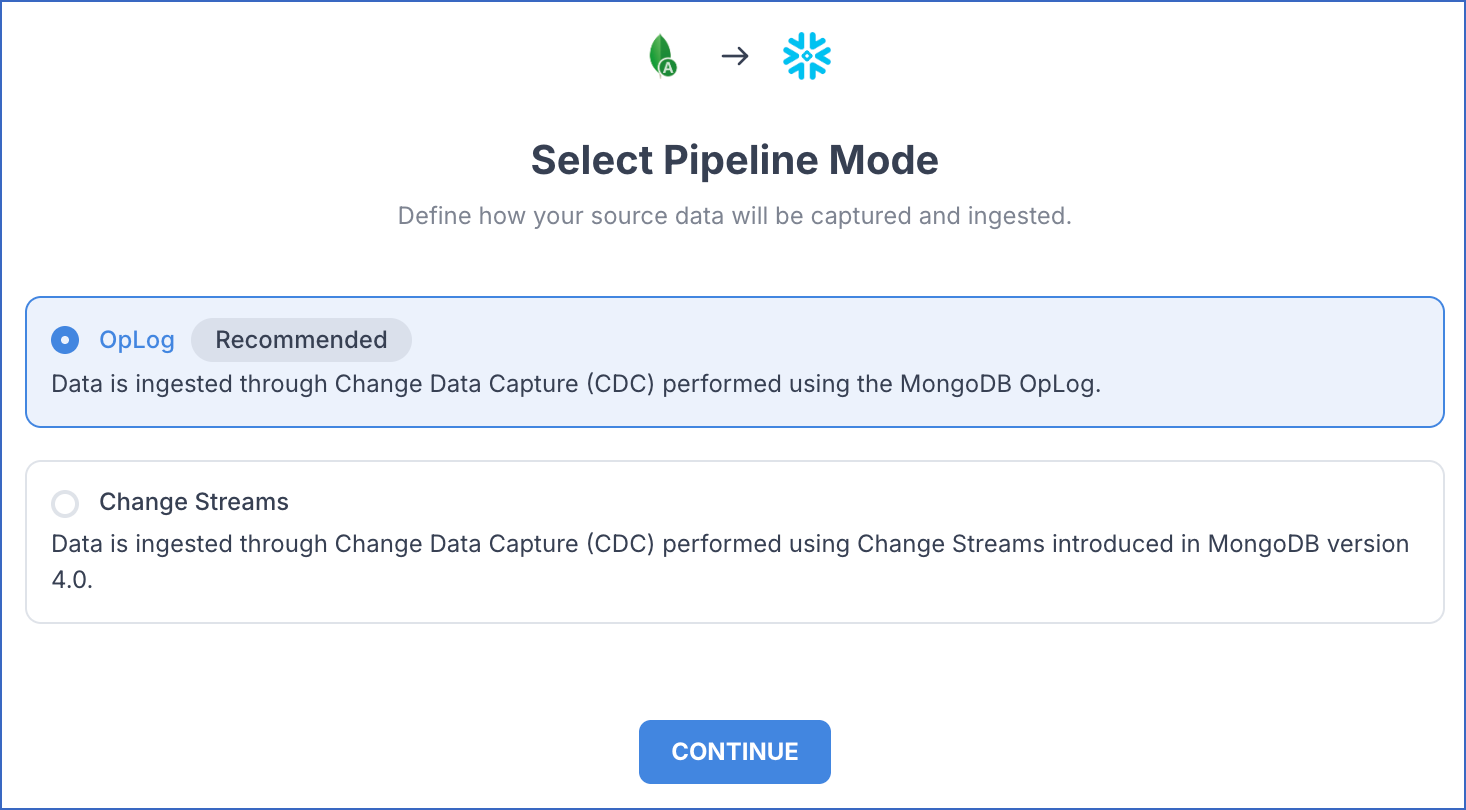

    • Select an Ingestion Mode: The desired mode by which you want to ingest data from the Source. You can expand this section by clicking SEE MORE to view the list of ingestion modes to choose from. Default value: OpLog.

      Mongo-OpLog

      The following ingestion modes are applicable to MongoDB Source:

      Note: If you are connecting to a sharded cluster, select Change Streams as the ingestion mode.

      • OpLog: Data is ingested using MongoDB’s OpLog. The OpLog contains individual, transaction-level details which helps replicas sync data from the primary instance.

        Note: OpLogs are present in data or standalone primary instances and replicas.

      • Change Streams: MongoDB’s Change Streams enables applications to stream real-time data changes without the complexity and risk of tailing the OpLog, for a single collection, a database, or an entire deployment. Change Streams are supported for all MongoDB configurations. However, for the clustered configuration, Change Streams works only if set up against a shard router (mongos).

        By default, in both Change Streams and OpLog modes, the data is read at the mongo instance level. To read data at the database level in Change Streams mode, disable the Load All Databases option while creating the Pipeline.

    • Connection Settings:

      • Connect through SSH: Enable this option to connect to Hevo using an SSH tunnel, instead of directly connecting your MongoDB Atlas database host to Hevo. This provides an additional level of security by not exposing your MongoDB setup to the public. Read Connecting Through SSH.

        If this option is disabled, you must whitelist Hevo’s IP addresses to allow Hevo to connect to your MongoDB host.

    • Advanced Settings:

      • Load All Databases: If enabled, Hevo fetches data from all the databases you have access to on the specified database host(s). Ensure that you have assigned the readAnyDatabase role or the listDatabases action on the admin database. Refer to Step 5 of section, Create a custom role above.

        If disabled, Hevo fetches the list of all the databases you have access to on the specified database host(s). From this list, you must select the databases you want to fetch data from.

        Load all databases

        Warning! Once the Pipeline is created, if you drop any of these databases from your MongoDB Source, the Pipeline will fail.

      • Merge Collections: If enabled, collections with the same name across different databases are merged into a single Destination table. If disabled, separate tables are created and prefixed with the respective database name. Read Example - Merge Collections Feature.

      • Load Historical Data: If disabled, Hevo loads data written in your database after the time of creation of the Pipeline. If enabled, the entire table data is fetched during the first run of the Pipeline.

      • Include New Tables in the Pipeline:

        If enabled, Hevo automatically ingests data from tables created in the Source after the Pipeline has been built. These may include completely new tables or previously deleted tables that have been re-created in the Source.

        If disabled, new and re-created tables are not ingested automatically. They are added in SKIPPED state in the objects list, on the Pipeline Overview page. You can update their status to INCLUDED to ingest data.

        You can change this setting later.

  5. Click TEST CONNECTION. This button is enabled once you specify all the mandatory fields. Hevo’s underlying connectivity checker validates the connection settings you provide.

  6. Click TEST & CONTINUE to proceed for setting up the Destination. This button is enabled once you specify all the mandatory fields.

Data Replication

For Teams Created Default Ingestion Frequency Minimum Ingestion Frequency Maximum Ingestion Frequency Custom Frequency Range (in Hrs)
Before Release 2.21 5 Mins 5 Mins 1 Hr NA
After Release 2.21 30 Mins 30 Mins 12 Hrs 1-24

Note: The custom frequency must be set in hours as an integer value. For example, 1, 2, or 3 but not 1.5 or 1.75.

  • Historical Data: In the first run of the Pipeline, Hevo ingests all available data for the selected objects from your Source database.

  • Incremental Data: Once the historical load is complete, data is ingested as per the ingestion frequency.

Additional Information

Read the detailed Hevo documentation for the following related topics:

Error 1001 - Incorrect credentials

Potential Causes

  • The credentials of the database user authorizing the connection are incorrect.

Suggested Actions

  • Verify that the password entered in the Configure your Source page for the authorizing user is correct.

  • Invite another team member with the required privileges to set up the Pipeline. Read Inviting and Moderating Team Members.

Error 1005 - Connection timeout

Potential Causes

  • The database connection details are incorrect.
  • Hevo’s IP addresses are not whitelisted.

Suggested Actions

  • Verify that the hostname entered in the Configure your Source page is correct.

  • Verify that the port entered in the Configure your Source page is correct.

  • Verify that Hevo’s IP addresses for your region are whitelisted. Refer to the Source configuration document for more information.

  • For MongoDB Atlas, refer to the detailed setup guide.

  • Invite another team member with the required privileges to set up the Pipeline. Read Inviting and Moderating Team Members.

Error 1006 - Invalid database hostname

Potential Causes

  • The database hostname is incorrect.

Suggested Actions

  • Verify that the hostname entered in the Configure your Source page is correct.

  • Use the Connection String mode to enter the details if a connection string is used to setup the MongoDB Source.

  • Use the Connect via SSH option to set up the Source if the MongoDB instance is on a local IP address.

  • Invite another team member with the required privileges to set up the Pipeline. Read Inviting and Moderating Team Members.

Error 1007 - SSH connection failed

Potential Causes

  • The SSH host or user credentials are incorrect.

Suggested Actions

  • Verify that the SSH IP address entered in the Configure your Source page is correct.

  • Verify that the SSH Port entered in the Configure your Source page is correct.

  • Verify that the SSH user and password entered are correct.

  • Invite another team member with the required privileges to set up the Pipeline. Read Inviting and Moderating Team Members.

Error 1008 - Database unreachable

Potential Causes

  • Hevo’s IP addresses are not whitelisted.
  • Hevo is unable to connect to the database.

Suggested Actions

  • Verify that the port entered in the Configure your Source page is correct.

  • Verify that Hevo’s IP addresses for your region are whitelisted. Refer to the Source setup page for more information.

  • For MongoDB Atlas, refer to the detailed setup guide.

  • Invite another team member with the required privileges to set up the Pipeline. Read Inviting and Moderating Team Members.

Error 1011 - Insufficient access

Potential Causes

  • The configured database user does not have the correct permissions.

Suggested Actions

Error 1028 - Primary/Master host needed for OpLog

Potential Causes

  • The Database Host specified is that of a shard or a replica set. The primary/master host must be mentioned while setting up the connection.

Suggested Actions

  • Verify that the hostname entered in the Configure your Source page has the primary/master hostname.

  • If MongoDB version 4.0 or above is used, select Change Streams as the Pipeline mode.

  • Invite another team member with the required privileges to set up the Pipeline. Read Inviting and Moderating Team Members.

Error 1029 - Version not supported for Change Streams

Potential Causes

  • The MongoDB version is lower than 4.0. Change Streams-based replication is only supported on MongoDB version 4.0 and above.

Suggested Actions

Source Considerations

  • MongoDB does not allow data ingestion from the OpLog in sharded clusters. As a result, Hevo cannot support OpLog as the ingestion mode when connecting to such clusters. Hence, you must select the Change Streams mode while configuring your Pipeline.

Limitations

  • Hevo does not support configuring a standalone instance of MongoDB without a replica.

See Also

Revision History

Refer to the following table for the list of key updates made to this page:

Date Release Description of Change
Oct-22-2024 NA Updated sections, Set up Permissions to Read MongoDB Atlas Databases (Optional), Whitelist Hevo’s IP Addresses and Retrieve Database Settings as per the latest MongoDB Atlas UI.
Oct-09-2024 NA Updated the Prerequisites section to reflect that Hevo only supports MongoDB version 3.4 and higher.
Apr-29-2024 NA Updated section, Configure MongoDB Atlas Connection Settings to include more detailed steps.
Mar-05-2024 2.21 - Added the Data Replication and Source Considerations sections.
- Updated the Configure MongoDB Atlas Connection Settings section to add information about selecting Change Streams as the ingestion mode for sharded clusters.
Sep-04-2023 NA Updated the page as per the latest MongoDB UI.
Mar-16-2023 NA Added a warning in the Advance Settings in section, Configure MongoDB Atlas Connection Settings about dropping databases from the Source after the Pipeline is created.
Mar-09-2023 2.09 Updated section, Configure MongoDB Atlas Connection Settings to mention about SEE MORE in the Select an Ingestion Mode section.
Dec-19-2022 2.04 Updated section, Configure MongoDB Atlas Connection Settings to add information that you must specify all fields to create a Pipeline.
Dec-07-2022 2.03 Updated section, Configure MongoDB Atlas Connection Settings to mention about the connectivity checker.
Jul-12-2022 1.92 Updated section, Configure MongoDB Atlas Connection Settings to include information about the drop-down to select databases in the Load All Databases option.
Apr-21-2022 1.86 Updated section, Configure MongoDB Atlas Connection Settings.
Jan-03-2022 1.79 Updated the description of the Include New Tables in the Pipeline advance setting in the Configure MongoDB Atlas Connection Settings section.
Jul-12-2021 1.67 Added the field Include New Tables in the Pipeline under Source configuration settings.
Jun-28-2021 1.66 - Updated the page overview section.
- Updated the section Retrieve Database Settings to include latest steps.
- Updated the section Set up Permissions to Read MongoDB Atlas Databases to include latest steps.
- Updated the section Configure MongoDB Atlas Connection Settings to include the option to connect to the MongoDB Atlas database using connection string.
- Added section, Limitations.
Last updated on Oct 22, 2024

Tell us what went wrong

Skip to the section
