PostgreSQL Setup Guide

PostgreSQL is a powerful, open source object-relational database system that uses the SQL language combined with many features that safely store and scale complicated data workloads. PostgreSQL is compatible with all major operating systems.

Hevo can load data from any of your Pipelines into a PostgreSQL database. Follow the steps in this page to add PostgreSQL as a Destination.

If you are new to PostgreSQL, you can follow the steps listed below to install and set up a PostgreSQL instance, and then create a database to which the Hevo Pipeline must load the data. You can also create users and grant them the necessary permissions to set up and manage the PostgreSQL databases.

The following image illustrates the key steps that you need to complete to configure PostgreSQL as a Destination in Hevo:

PostgreSQL Destination Setup

Prerequisites

Installing PostgreSQL (Optional)

Before you can use PostgreSQL you need to install it. It is possible that PostgreSQL is already installed in the system, either because it was included in your operating system distribution or because the system administrator already installed it.

To verify if PostgreSQL is already installed, run the following command in the Terminal window:

systemctl status postgresql

The expected response when PostgreSQL is:

  • Installed: Active: active

  • Not installed: Unit postgresql.service could not be found

If PostgreSQL is not already available, you can install it yourself. This does not require superuser (root) access.

PostgreSQL is available as binary packages for most common operating systems. This is the recommended way to install PostgreSQL. For an updated list of platforms providing binary packages, please visit the Download section on the PostgreSQL website at PostgreSQL: Downloads and follow the instructions for your specific platform.

Note: This section explains how to install PostgreSQL on a Linux machine running Ubuntu.

  1. Open the Terminal window on your machine.

  2. Enter the following commands:

      sudo sh -c 'echo "deb http://apt.postgresql.org/pub/repos/apt $(lsb_release -cs)-pgdg main" > /etc/apt/sources.list.d/pgdg.list'
  wget --quiet -O - https://www.postgresql.org/media/keys/ACCC4CF8.asc | sudo apt-key add -
  sudo apt-get update
  sudo apt-get -y install postgresql

    This installs the PostgreSQL server on your machine and creates a postgres user.

Creating a Database Cluster and Database (Optional)

A database cluster is a single directory where all your data is stored. You can choose the location of the directory.

Perform the following steps to create (initialize) the database cluster:

  1. Log in to your PostgreSQL server as the postgres user created in step 1.

  2. Enter the following command to create the database cluster. The -D option allows you to specify where the database cluster should be stored.

    $ initdb -D /usr/local/pgsql/data

Note: The initdb command attempts to create the directory you specify if it does not already exist. This fails if initdb does not have permissions to write in the parent directory. It is recommended that the PostgreSQL user own not just the data directory but its parent directory as well. If the desired parent directory does not exist, you need to create it first, using root privileges. To do this, enter the following commands:

root# mkdir /usr/local/pgsql
root# chown postgres /usr/local/pgsql
root# su postgres
$ initdb -D /usr/local/pgsql/data

When a cluster is created, a database named postgres is created by default, which is used by utilities, users, and third-party applications. You can use this database instance to set up the Destination.

Create a Database User and Grant Privileges

1. Create a database user

Perform the following steps to create the database user in your PostgreSQL database:

  1. Log in to your PostgreSQL server as a Superuser using an SQL client, such as psql.

  2. Enter the following command:

      CREATE USER <user_name> WITH PASSWORD '<strong password>';

    Note: Replace the placeholder values in the command given above with your own.

2. Grant privileges to the user

  1. Log in to your PostgreSQL server as a Superuser using an SQL client, such as psql.

  2. Run the following commands to grant the required privileges to the database user, to create the database objects needed to load and store your data:

    GRANT CREATE, CONNECT, TEMPORARY ON DATABASE <database_name> TO <database_username>;
GRANT CREATE, SELECT, USAGE ON SCHEMA <schema_name> to <user_name>;

    Note: Replace the placeholder values in the commands given above with your own.

Configure PostgreSQL Connection Settings

Perform the following steps to configure PostgreSQL as a Destination in Hevo:

  1. Click DESTINATIONS in the Navigation Bar.

  2. Click + CREATE DESTINATION in the Destinations List View.

  3. On the Add Destination page, select PostgreSQL.

  4. On the Configure your PostgreSQL Destination page, specify the following:

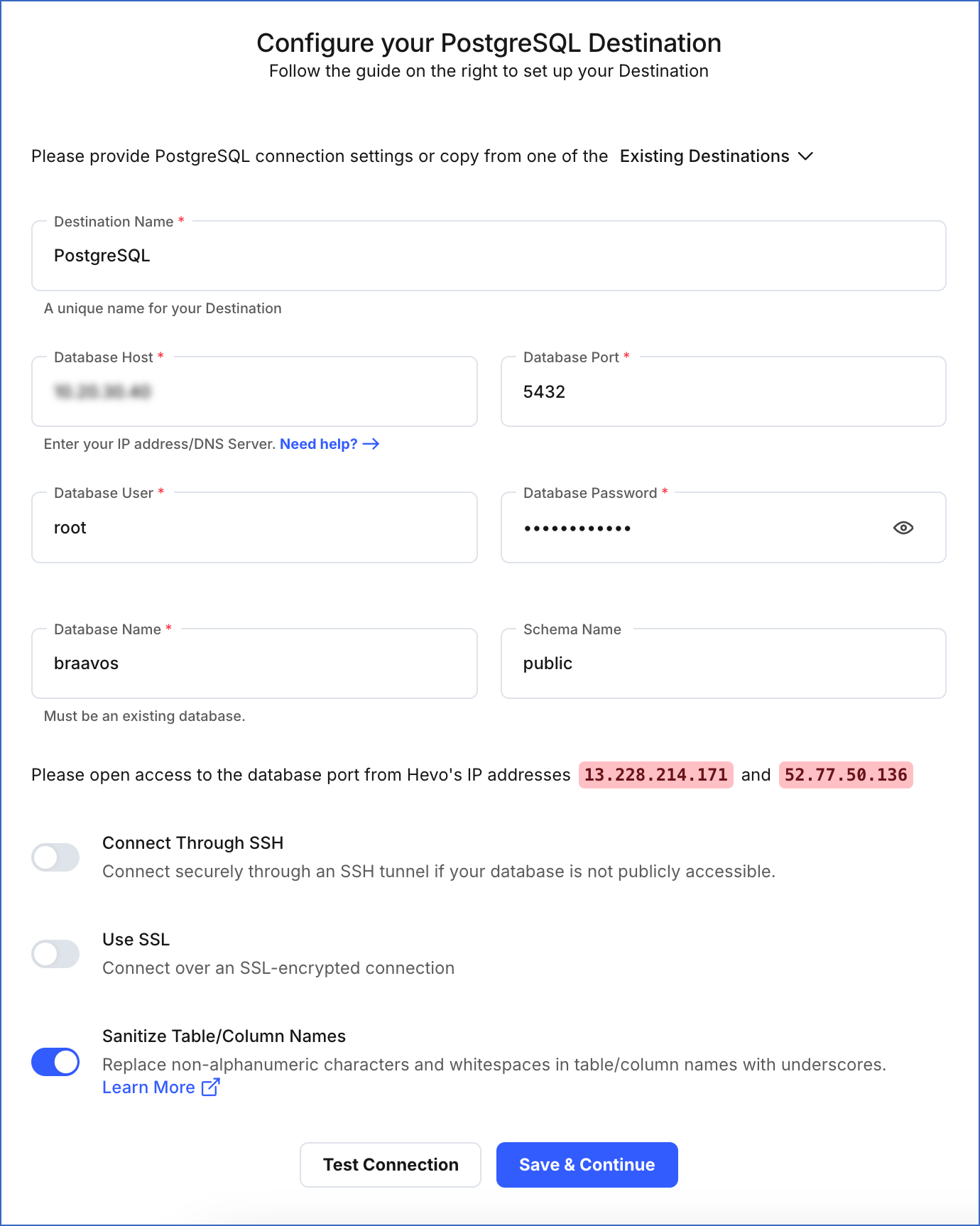

    PostgreSQL Destination settings

    • Destination Name: A unique name for your Destination, not exceeding 255 characters.

    • Database Host: The PostgreSQL host’s IP address or DNS.

    • Database Port: The port on which your PostgreSQL server listens for connections. Default value: 5432.

    • Database User: A user with a non-administrative role in the PostgreSQL database.

    • Database Password: The password of the database user.

    • Database Name: The name of the Destination database to which the data is loaded.

    • Schema Name (Optional): The name of the Destination database schema. Default value: public.

    • Additional Settings:

      • Connect through SSH: Enable this option to connect to Hevo using an SSH tunnel, instead of directly connecting your PostgreSQL database host to Hevo. This provides an additional level of security to your database by not exposing your PostgreSQL setup to the public. Read Connecting Through SSH.

        If this option is disabled, you must whitelist Hevo’s IP addresses. You can refer to the PostgreSQL Source documentation pages for the steps to whitelist the IP addresses of your region for your PostgreSQL variant.

      • Use SSL: Enable this option to use an SSL-encrypted connection. Specify the following:

        • CA File: The file containing the SSL server certificate authority (CA).

        • Load all CA Certificates: If selected, Hevo loads all CA certificates (up to 50) from the uploaded CA file, else it loads only the first certificate.

          Note: Select this check box if you have more than one certificate in your CA file.

        • Client Certificate: The client public key certificate file.

        • Client Key: The client private key file.

        For the steps to create the required files and keys, read PostgreSQL

      • Sanitize Table/Column Names?: Enable this option to remove all non-alphanumeric characters and spaces in a table or column name, and replace them with an underscore (_). Read Name Sanitization.

  5. Click TEST CONNECTION. This button is enabled once all the mandatory fields are specified.

  6. Click SAVE & CONTINUE. This button is enabled once all the mandatory fields are specified.

Additional Information

Read the detailed Hevo documentation for the following related topics:

Error 1003 - Authentication error

Error Summary

  • Hevo is not able to establish connection to the database using the credentials provided by the user.

Potential Causes

  • The credentials of the database user authorizing the connection are incorrect.

Suggested Action(s)

  • Verify that the Database User and Database Password entered in the Configure your PostgreSQL Destination page for the authorizing user are correct.

    To do this, use the following command in your SQL client such as psql.

    psql -h <host fdqn/ip> -p 5432 -U <user> -d <database>

    Replace the placeholder values in the commands above with your own. For example, <user> with jacobs.

    After that, you are prompted to enter your database password. Enter your password to check whether it is correct.

  • Invite another team member with the required privileges to set up the Pipeline. Read Inviting and Moderating Team Members.

Error 1006 - Connection to host failed

Error Summary

  • Hevo is unable to establish connection to the database using the credentials provided by the user.

Potential Causes

  • The database hostname is incorrect.

Suggested Action(s)

  • Verify that the Database Host entered in the Configure your PostgreSQL Destination page is reachable.
    To test connectivity to the host, enter the following command in the command prompt (on Windows) or terminal (on Linux or macOS) tool.

    telnet <db fdqn hostname/ip> <db_port>

    For example, telnet 212.0.1.10 5432.

    In case you want to change or correct the value, you can do it in the Configure your PostgreSQL Destination page.

  • Use the Connect via SSH option in the Configure your PostgreSQL Destination page, if the PostgreSQL instance is on a local IP address. Read Connecting Through SSH.

  • Invite another team member with the required privileges to set up the Pipeline. Read Inviting and Moderating Team Members.

Error 1014 - Database does not exist

Error Summary

  • Hevo is unable to find the database provided by the user.

Potential Causes

  • The database name is either incorrect or not provided.

Suggested Action(s)

  • Verify that the Database Name entered in the Configure your PostgreSQL Destination page is correct.
    To do this:

    1. Log in to the PostgreSQL server with your SQL client, such as psql, using the Database User that you entered in the Configure your PostgreSQL Destination page.

    2. Enter the following command to display the list of your database names and to check whether the database name you provided is available:

      SELECT EXISTS (

    SELECT datname FROM pg_database

    where datname = '<database_name>'

  )

      Note: Replace the placeholder values in the commands above with your own. For example, <database_name> with school.

  • Verify that the Database User entered in the Configure your PostgreSQL Destination page has access to the database.

  • Invite another team member with the required privileges to set up the Pipeline. Read Inviting and Moderating Team Members.

Error 1017 - Connection settings errors

Error Summary

  • Hevo is unable to establish connection to the database host.

Potential Causes

  • The database connection details are incorrect.

  • Hevo’s IP addresses are not whitelisted.

Suggested Action(s)

  • Verify that the Database Host and Database Port entered in the Configure your PostgreSQL Destination page are correct.
    To do this, use the following command in the command prompt (on Windows) or terminal (on Linux or macOS) tool. For example, telnet 212.0.1.10 5432.

    telnet <db fdqn hostname/ip> <db_port>

    In case you want to change or correct the values, you can do it in the Configure your PostgreSQL Destination page.

  • Verify that Hevo’s IP addresses are whitelisted.

  • Invite another team member with the required privileges to set up the Pipeline. Read Inviting and Moderating Team Members.

Destination Considerations

  • You must disable any foreign keys defined in the target tables. Foreign keys do not allow data to be loaded until the reference table has a corresponding key defined.

  • You can replicate data for only 1594 columns in a given PostgreSQL table. Read Limits on the Number of Columns.


See Also

Last updated on Sep 03, 2024
