Configure Google Search Console as a Source in your Pipeline

Perform the following steps to configure your Google Search Console Source:

1. Click Pipelines in the Navigation Bar.

2. Click + Create Pipeline in the Pipelines List View.

3. On the Select Source Type page, select Google Search Console.

4. On the Select Destination Type page, select the type of Destination you want to use.

5. On the Select Pipeline Type page, click Edge, and then click Continue.



   This page appears only if the selected Destination type is supported in Edge and your Team has an existing Google Search Console Pipeline with the same Destination type. Otherwise, you can proceed to create an Edge Pipeline.

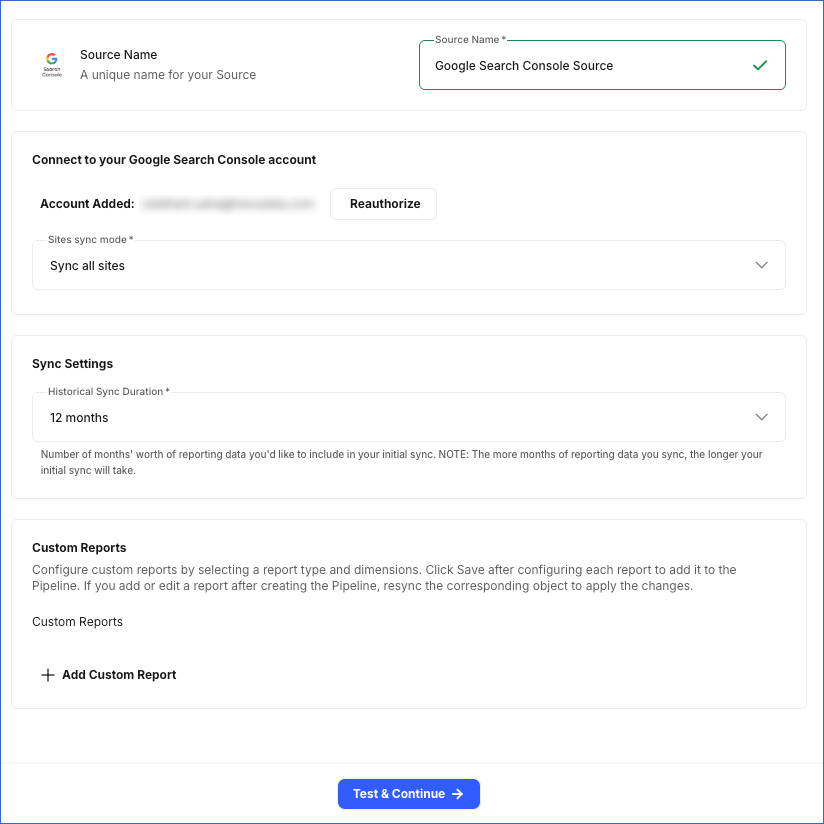

6. In the Configure Source screen, specify the following:



   • Source Name: A unique name for your Source, not exceeding 255 characters. For example, Google Search Console Source.

   • In the Connect to your Google Search Console account section, click Authenticate With Google Search Console, log in to your Google account, and grant Hevo access to your account.

   • From the Sites sync mode drop-down, select whether Hevo syncs data for all sites accessible to the authenticated account, or only specific ones:



     • Sync all sites: Hevo syncs data for all properties accessible to your authorized Google account, including any properties added later.

     • Sync specific sites: Hevo syncs data only for the properties you select from the Sites to sync drop-down.



   • Historical Sync Duration: From the drop-down, select the duration for which you want to ingest existing data from the Source. This cannot be changed after the Pipeline is created. Default value: 12 months.

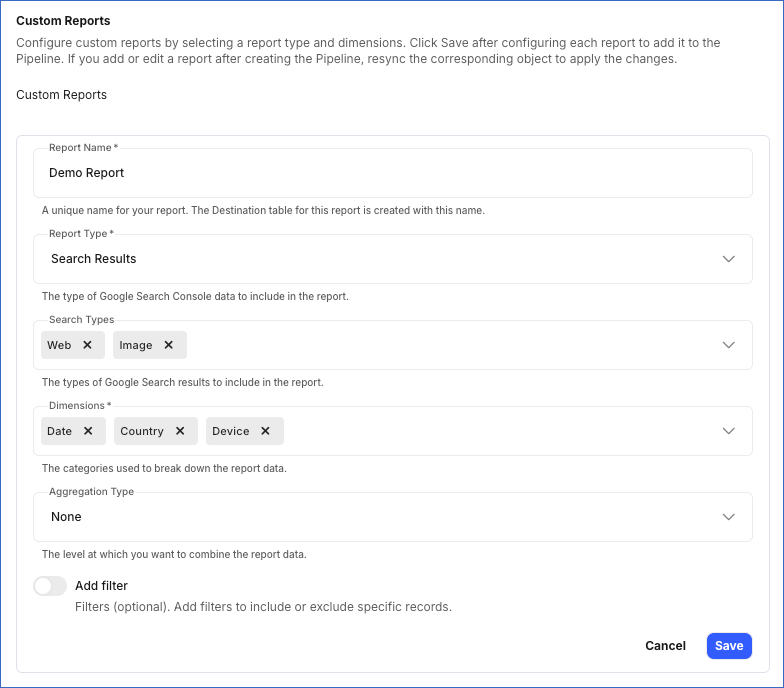

   • (Optional) In the Custom Reports section, click + Add Custom Report to define a custom report. Each report syncs to its own Destination table. For each report, specify the following:



     • Report Name: A unique name for your report. The Destination table for this report is created with this name.

     • Report Type: The type of Search Console report data you want to sync.

     • Search Types: The type of Google Search results you want to include in the report. This field is applicable only for the Search Results report type.

     • Dimensions: Categories used to break down your report data. The available dimensions depend on the selected Report Type value.

     • Aggregation Type (Optional): The level at which you want to group the report data. This field is applicable only for the Search Results report type. Default value: None.

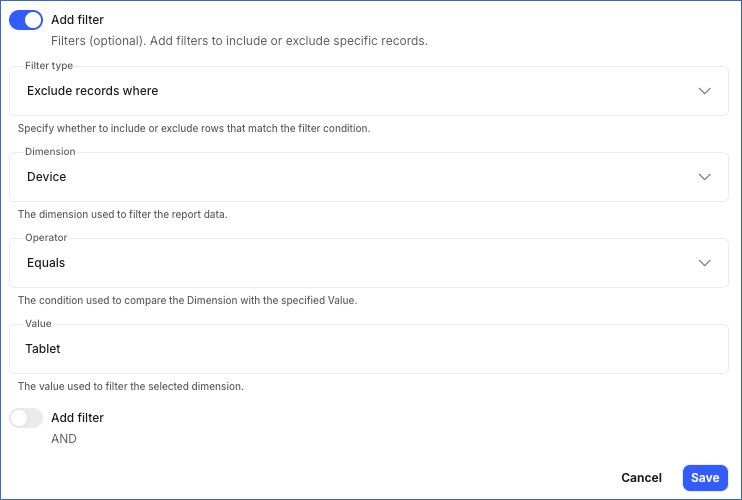

     • Add Filter (Optional): Enable this option to specify up to three filters to narrow down the report data. This is applicable only for the Search Results report type. If you add more than one filter, all filters are combined using AND. A row must match every filter to be included or excluded. For each filter, specify:



       • Filter Type: Determines whether rows that match the filter condition are included in or excluded from the report.

       • Dimension: The dimension used to filter the report data.

       • Operator: The condition used to compare the selected Dimension with the specified Value.

       • Value: The value or values to match for the selected Dimension.

     Note:

     • Click Save after configuring each report. Reports that are not saved before you click Test & Continue are not included in the Pipeline.

     • If you add a new custom report or edit an existing one after the Pipeline is created, resync the corresponding object to apply the changes and load the data using the updated configuration.

7. Click Test & Continue to test the connection to your Google Search Console Source. Once the test is successful, you can proceed to set up your Destination.

Data Replication

Hevo replicates data for all the objects selected on the Configure Objects page during Pipeline creation. By default, all supported objects and their available fields are selected. However, you can modify this selection while creating or editing the Pipeline.

Hevo ingests the following types of data from your Source objects:

• Historical Data: The first run of the Pipeline ingests historical data for the selected objects, based on the Historical Sync Duration specified when configuring the Source, and loads it into the Destination.

• Incremental Data: Once the historical load is complete, new and updated records for objects are ingested as per the sync frequency.

For the Sitemap object, Hevo ingests the entire data in subsequent Pipeline runs. For all other objects, Hevo ingests only the incremental data in subsequent Pipeline runs.

Google Search Console enforces a rate limit on the number of calls that can be made to its API in a given time period. If these limits are exceeded, a rate limit exception occurs. To understand how Hevo handles such scenarios, read Handling Rate Limit Exceptions.

You can create a Pipeline with this Source only using the Merge load mode. The Append mode is not supported for this Source.

Schema and Primary Keys

Hevo uses the following schema to upload the records to the Destination. For a detailed view of the objects, fields, and relationships, click the ERD.

Click to view ERD

Data Model

The following is the list of tables (objects) that are created at the Destination when you run the Pipeline:
